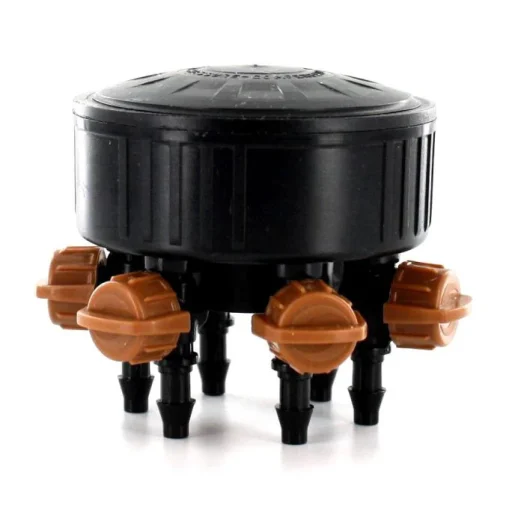

Converts an existing 1/2″ sprinkler riser to a 6-outlet, adjustable high-flow drip system with a flow rate 0 to 20 GPH per zone. The 6-outlet drip manifold operates at any pressure between 15 to 50 PSI. It may be used with 1/4″ micro tubing, 1/4″ dripline or with individual drippers
Features:
- Swivel barbed outlets allow installation flexibility and protection of flow control
- Made of rugged materials to withstand adverse conditions
- Can be installed above or below grade in a 6″ (15 cm) emitter box
- Use with 1/4″ .150″ -.170″ ID (4 mm ID) distribution tubing or with 1/4″ (4 mm) dripline
Specifications
- Flow rate is adjustable between 0-20 GPH (0-75 L/H) per each outlet
- Operating pressure: 15-50 PSI (3.5 BAR)
- Temperature range: up to 122°F (50°C)
- Inlet size: female pipe thread (FNPT)
- Outlets size: 1/4″ barbed mini valve
- Accepts 1/4” distribution tubing with .150″ to .170″ ID and 1/4″ drip line
- Filter requirement: minimum of 40 mesh
- Materials:
- Body and cover: high-impact plastic
- Barbed valve: high-impact plastic
- Diaphragm: EPDM
