OPTIMAL SETUP RECOMMENDATION*
Coverage Area 3 ft. x 3 ft.
Height Above Canopy 3 ft.
Distance between fixtures** 3 ft.

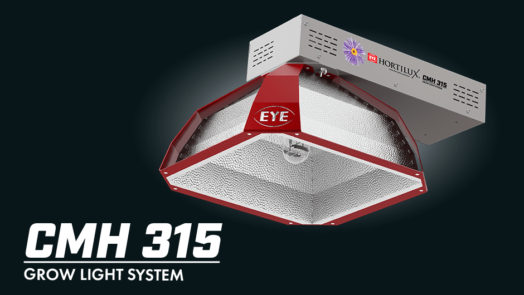

*Optimal setup and performance measurements based on CMH 315 Watt System with an EYE HORTILUX 315 CMH lamp. Actual performance may vary. **The distance between fixtures should be measured from the center of the lamp.

Runs Lamp Wattage1
315W

Weight
15 lbs.

Dimensions
21.7 in. x 14.9 in. x 6.1 in.
(551 mm x 378 mm x 155 mm)

Can Be Air Cooled
Yes

Socket Type
PGZX18 Bi-Pin

Suggested Height Above Canopy2
3 ft.

Coverage Area
3 ft. x 3 ft.

Distance Between Fixtures3
3 ft.

Dimming
No

Cord Length
6 ft. (1.8m)

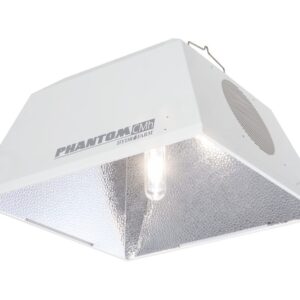

Open/Closed Fixture
Open

Power Factor
>0.95

Operating Frequency
50/60 Hz

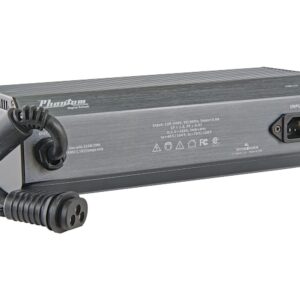

Ballast Type
Low Frequency Square Wave

Ballast Efficiency
95% @ 120V, 97% @ 240V

Ambient Temperature
23 to 104°F (-5 to +40°C)

Total Harmonic Distortion Max
15%

Ballast Input
15A 250V, C14 Style

System Compliance
UL Listed

Warranty
3 year limited

Environmental Protection Rating
None

Country of Origin
Fixture: Assembled in USA
Lamps: Made in USA
